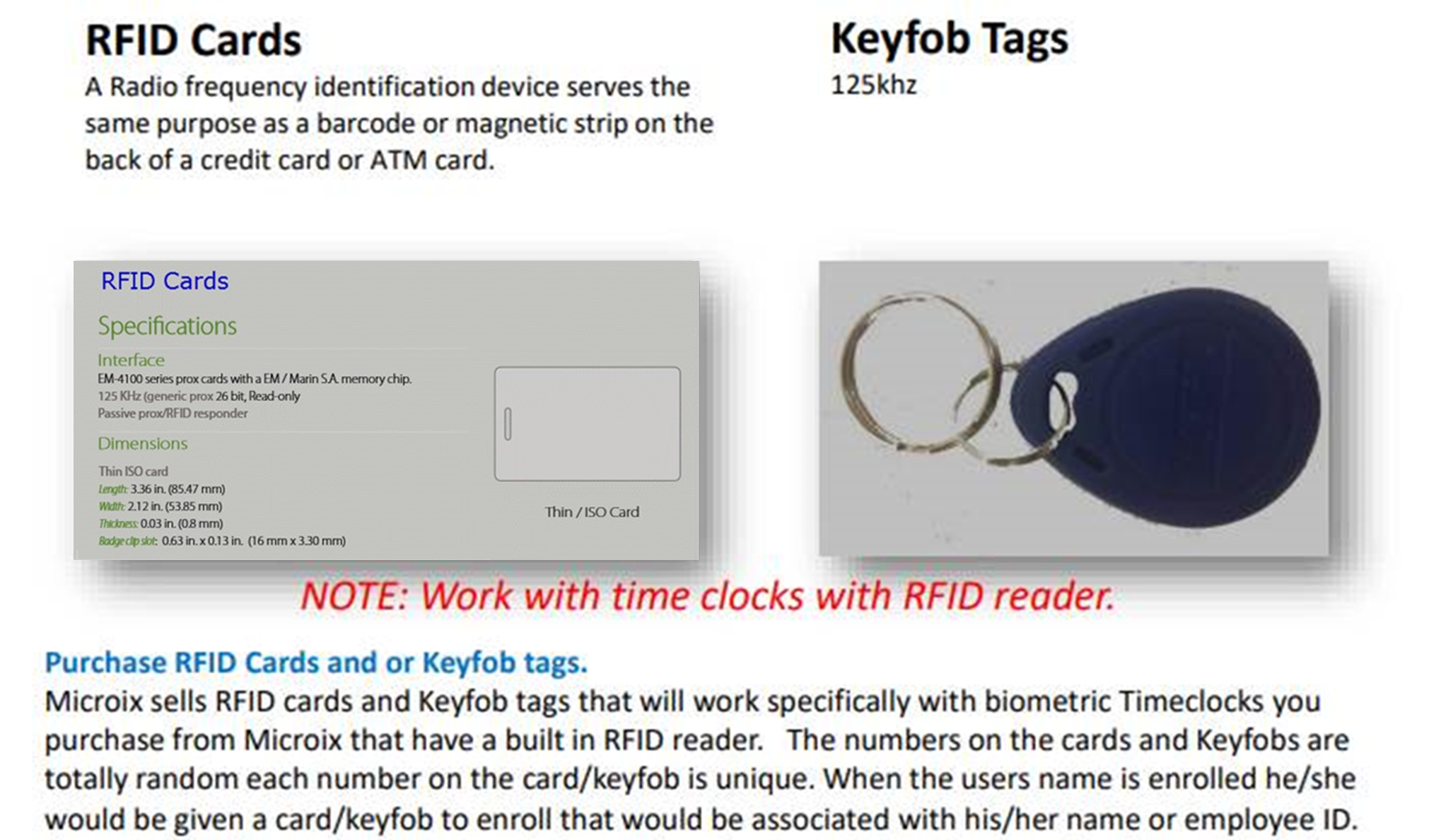

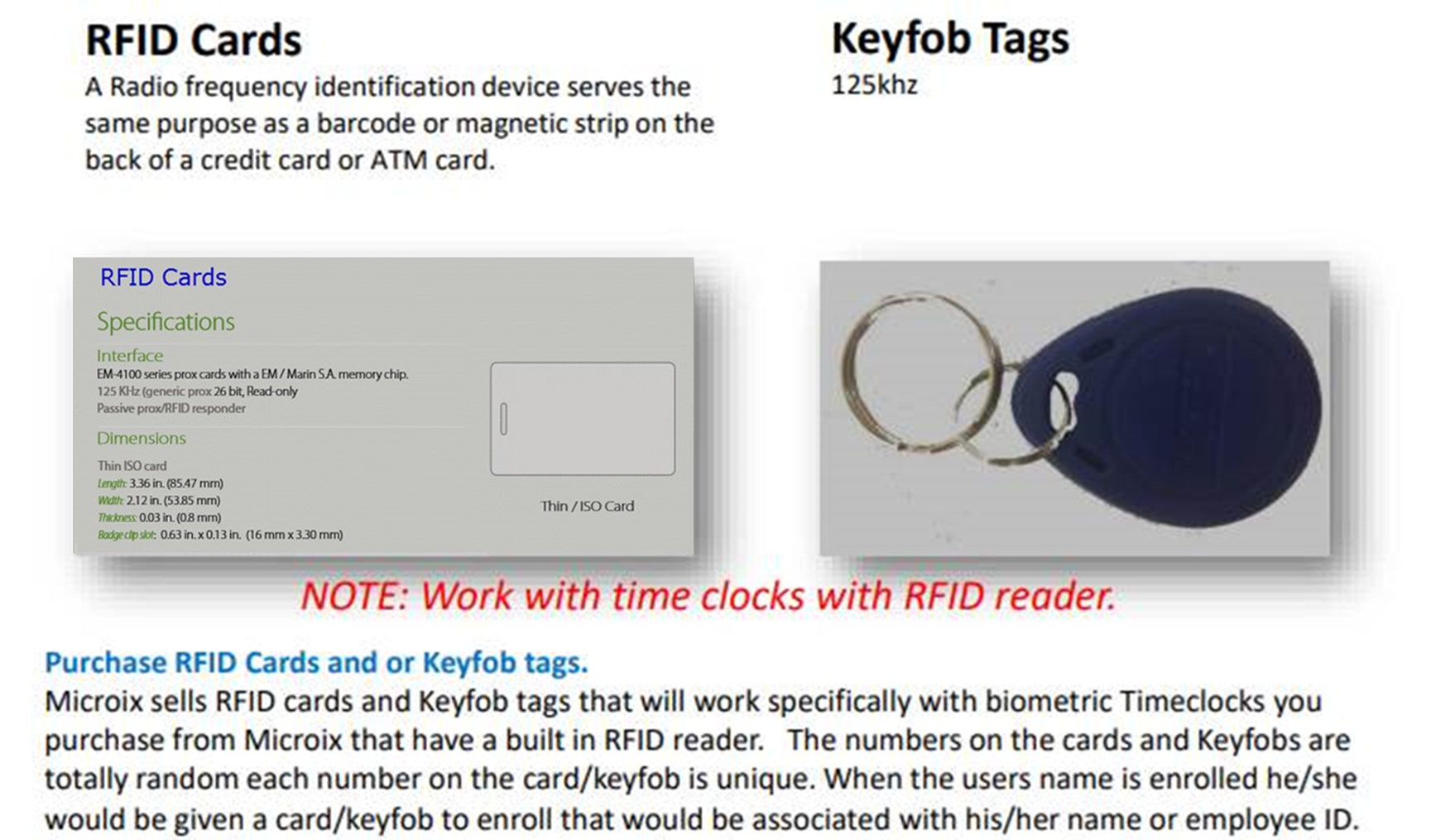

Device Accessories

Type & Interface

•            EM‑4100 series proximity card

•            EM / Marin S.A. memory chip

•            125 kHz (generic prox, 26‑bit, read‑only)

•            Passive RFID responder (no battery)

Dimensions

•            Length: 3.36 in (85.47 mm)

•            Width: 2.12 in (53.85 mm)

•            Thickness: 0.03 in (0.8 mm)

•            Badge‑clip slot: 0.63 in × 0.13 in (16 mm × 3.30 mm)

Usage Notes

•            Works with Microix biometric time clocks with built‑in RFID reader

•            Each card has a unique, randomly assigned number (not printed on the surface)

•            Assigned to employees during enrollment and linked to their name or employee ID

Keyfob Tag Specifications

Type & Frequency

•            125 kHz proximity keyfob

•            Compatible with Microix biometric time clocks with RFID reader

Usage Notes

•            Each keyfob has a unique, randomly assigned number

•            Assigned during user enrollment and linked to employee name or ID

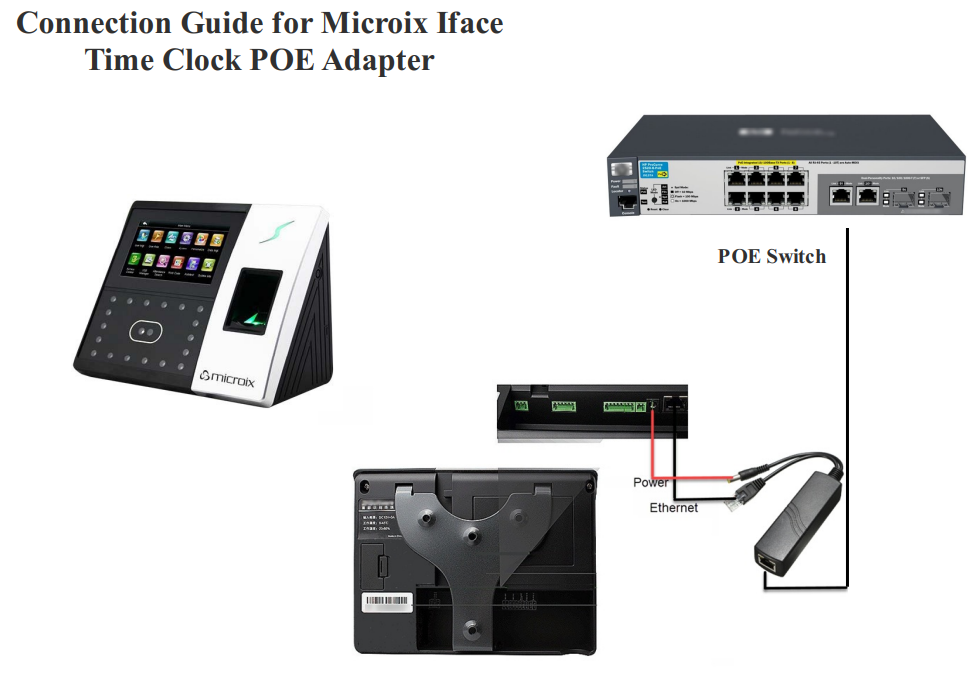

iFace POE Connection Guide:

Q&A: RFID Cards for iFace Timeclock & Door Access

Q: Are there specifications available for an RFID card compatible with both the iFace timeclock and door access system?
A: Not at this time. Our vendor was unable to provide compatibility specifications. If additional details become available, we will share updates accordingly.

Q: Can we print employee photos, names, and company info on RFID cards if we purchase our own card printer?

A: Yes, clients may use their own card printer to print images or text onto the cards. A sample RFID card can be provided upon request, or one should already be included in the box with each iFace timeclock.
