RFID Cards
Compatible with Microix iFace Timeclock – sold separately
Pricing Information
| Item | Unit | One‑Time Cost (per pack) | Estimated Domestic Shipping & Handling |
|---|---|---|---|
| RFID Cards (25 per pack) | 1 PK | $32 | Qty 1–10 (1–3 lb): $25 Qty 11–20 (4–7 lb): $30 |
Specifications
Type & Interface
EM 4100 series proximity card
EM / Marin S.A. memory chip
125 kHz (generic prox, 26‑bit, read‑only)
Passive RFID responder (no battery)
Dimensions
| Measurement | Inches | Millimeters |
|---|---|---|
| Length | 3.36 in | 85.47 mm |
| Width | 2.12 in | 53.85 mm |
| Thickness | 0.03 in | 0.8 mm |
| Badge clip slot | 0.63 in × 0.13 in | 16 mm × 3.30 mm |
Usage Notes

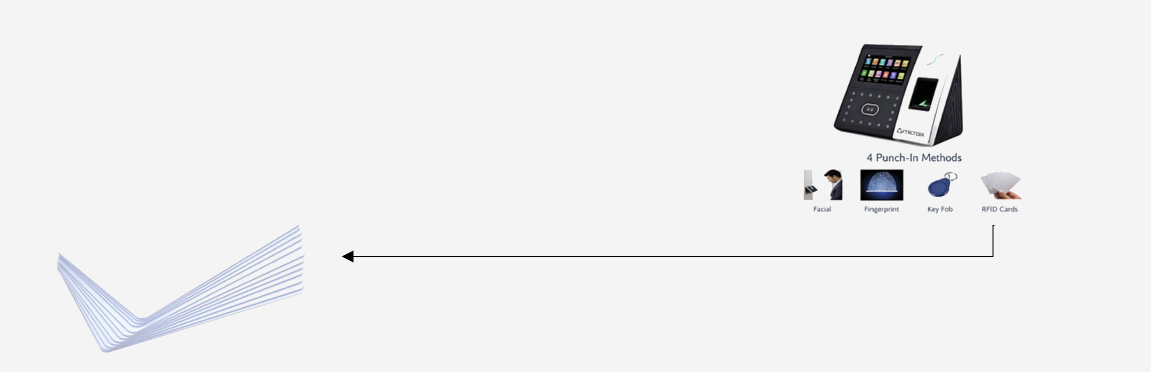

Compatible with Microix iFace biometric time clocks equipped with a built‑in RFID reader.
Each card contains a unique, randomly assigned number (not printed on the surface).
Cards are assigned to employees during enrollment and linked to their name or employee ID.
RFID Card Setup & Enrollment
The organization’s Microix Administrator, who participated in the initial configuration of the Microix Timesheet Module with Timeclock, should already be familiar with the enrollment process (facial, fingerprint, and RFID card).
If a refresher is needed, support hours may be purchased for additional guidance or hands‑on assistance.
Q&A: RFID Cards for iFace Timeclock & Door Access
Q: Are specifications available for an RFID card compatible with both the iFace timeclock and the door access system? A:Not at this time. Our vendor has not provided compatibility specifications. Any updates will be shared as soon as they become available.
Q: Can employee photos, names, or company information be printed on RFID cards using our own card printer? A:Yes. Clients may use their own card printer to print images or text onto the cards. A sample RFID card can be provided upon request, and one is typically included in the box with each iFace timeclock.
